YP6209 Automatic Hydraulic Press

Generally used to press： Tile thickness：3-30mm Tile size:2-600*600mm、600*1200mm、800*800mm、900*900mm、1000*1000mm、700*1300mm、800*1400mm、750*1500mm etc, Polished tile, Virtrified rustic tile, Glaze-polished tile, Full body marble tile and Sintered stone.

Back to list

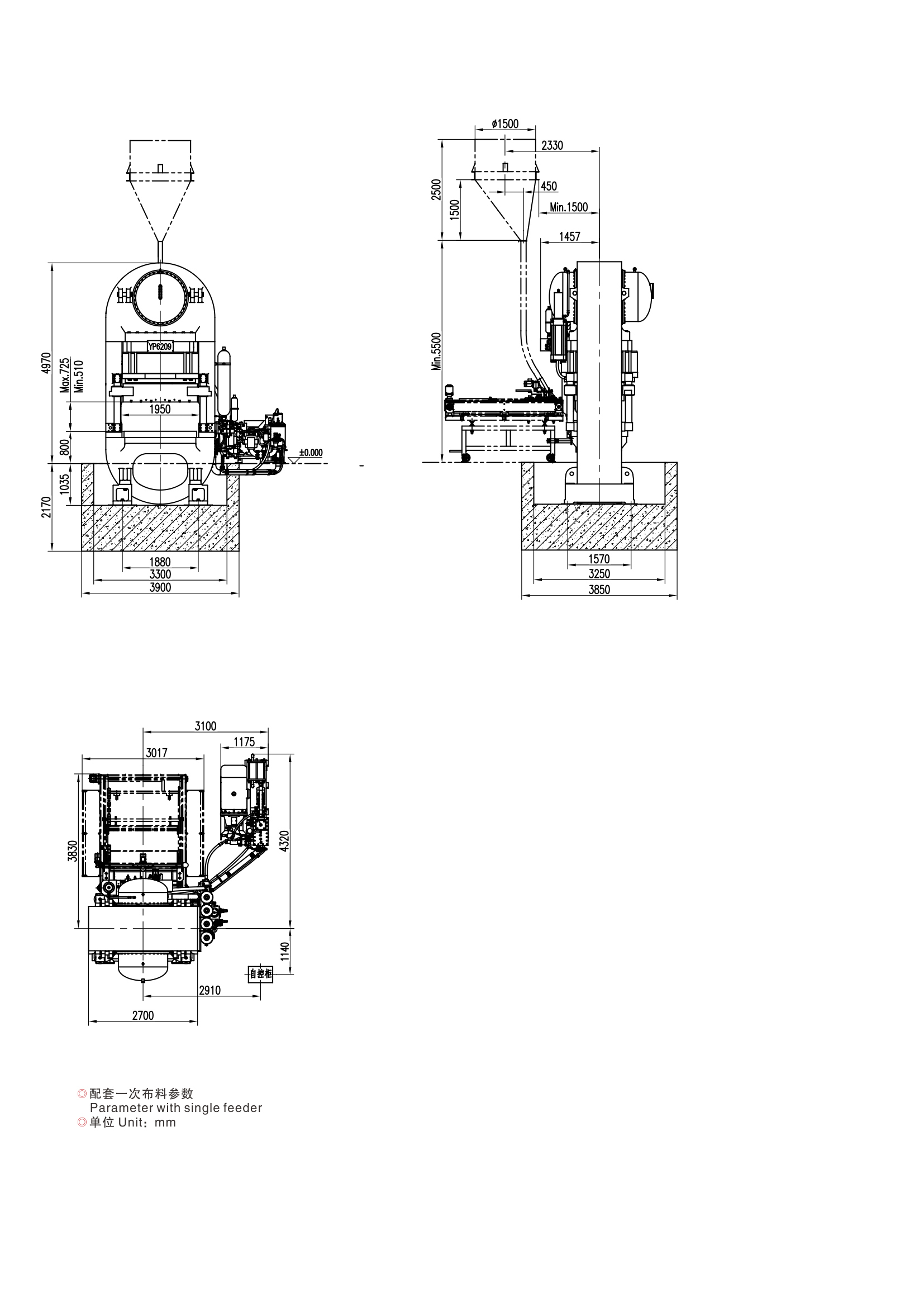

Technical Parameters Lay-out Drawing

主要技術參數	TECHNICAL DATA	UNIT	YP6209
最大壓制力	Max.Pressing Force	kN	62000
最大頂出力	Max.Ejecting Force	kN	275
動梁最大行程	Max.Plunger Stroke	mm	215
動梁下平面與工作臺面最小間距	Min.Distance between Press Plunger and Table	mm	510
動梁下平面與工作臺面最大間距	Max.Distance between Press Plunger and Table	mm	725
左右立柱間凈空	Clearance between Columns	mm	1950
動梁工作面前后寬度	Useful Width of Plunger	mm	1220
工作臺面前后寬度	Width of Press Table	mm	1400
最大填料深度	Max.Filling Depth	mm	70
空循環次數可達	Working Cycles in idle Stroke	mm-1	16
周期中加壓次數	Strokes Per Cycle	times	2～5
主電機功率	Power of the Main Motor	kW	160
系統裝油量	System Oil Capacity	L	1750
系統耗氣量	Air Consumption	m3/h	0.4
常溫水流量	Water Consumption at 24℃	m3/h	20
主機重量	Weight of the Press Body	t	133
